Each Protection level involves the implementation of specific equipment to meet the requirements

-Level 1 :

Simple Fencing

-Level 2 :

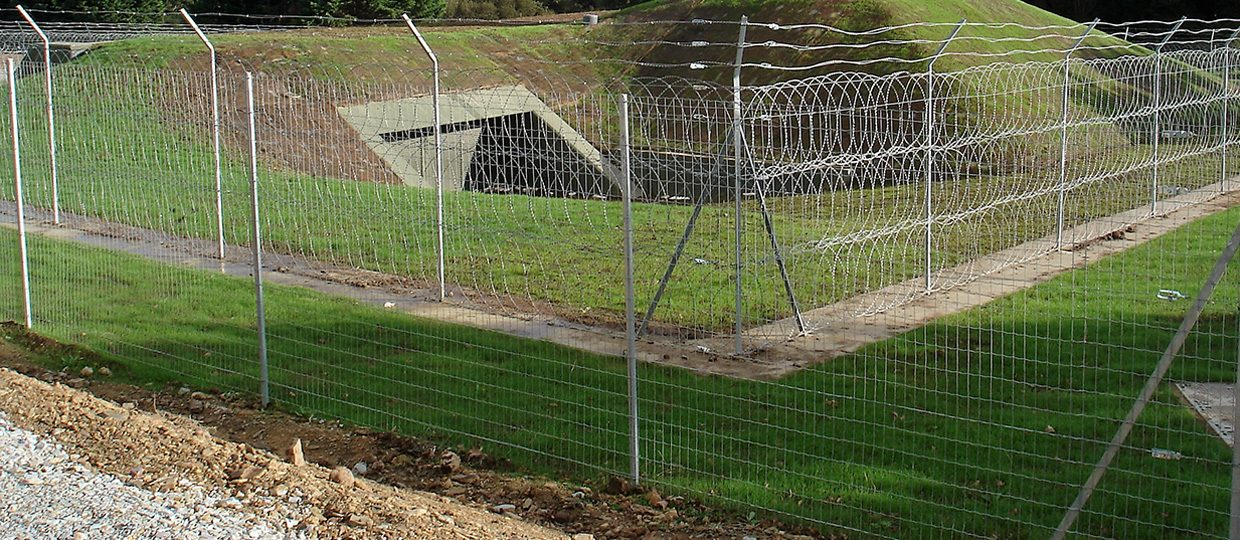

Simple or double fencing

Additional protection equipment (Crash barrier,  gabion walls, automated sensor lighting…)

Intrusion detection (fence front or rear )

Visible detection equipment

Subsoil Detection equipment

Video surveillance for detection confirmation

-Level 3

Intrusion Monitoring

Video Surveillance system

Autonomous UAV





INTRUSION DETECTION

Many intrusion detection solutions are available. A specific site oriented survey is required to select the best suited option, mainly depending on the environment.



-Thermal Camera with Image Processing

This technology offers an all weather  capability suited to most environments.

Drawback : The sensor must be mounted on a solid stand to avoid false alarms



-Radar & Hyper-frequency Barrier

A Hyper Frequency barrier is composed of a radio transceiver and a receiver.  The radio emission generates a lobe between the equipment.  An intruder in the covered area will absorb  radio waves and modify the lobe.

-Advantage : 3D detection capability.

-Drawback: the transceiver and receiver must be spaced of at least 2 meters. The system is rain sensitive.



-Infrared Barriers

Made of two opposite Laser transmitters and sensors. The system can detect a beam crossing up to 500 meters.

This type of system is particularly adapted to monitor a right line fence on a level terrain.

Advantage : The beams can be adjusted to locate the intruder on the monitored segment.

Drawback: The system is fog sensitive. The terrain needs to be level and bare of vegetation.



-Laser Sensor

The laser barrier is created by a rotating emitter.  The distance and angle of any obstacle on the ground is calculated within a range of 80 meters.

Advantages : Reduced false alarm rate (On barren terrain)

Drawbacks: The sensor is located at the center of the covered area. The system is rain and fog sensitive.



-Buried Pressure Tube or Fiber Optic

Stepping on the sensor area generates a pressure (or optical signal) unbalance which is detected.

Advantage : Low maintenance buried system

Drawback: The detection (sensor) band must be kept clear to avoid false alarms.



-Fence Mounted Intrusion Detection system

A variety of sensors can be mounted on a fence :

Sensing Fiber Optic

Sensing fence (partial or total)

Vibration sensors or cable

Sensing fence doubling the standard fence



Advantages : The sensing area is limited to the fence itself

Drawbacks: The existing fence must be capable of holding additional equipment with the required robustness and prevent nuisance alarms.
